#Routing

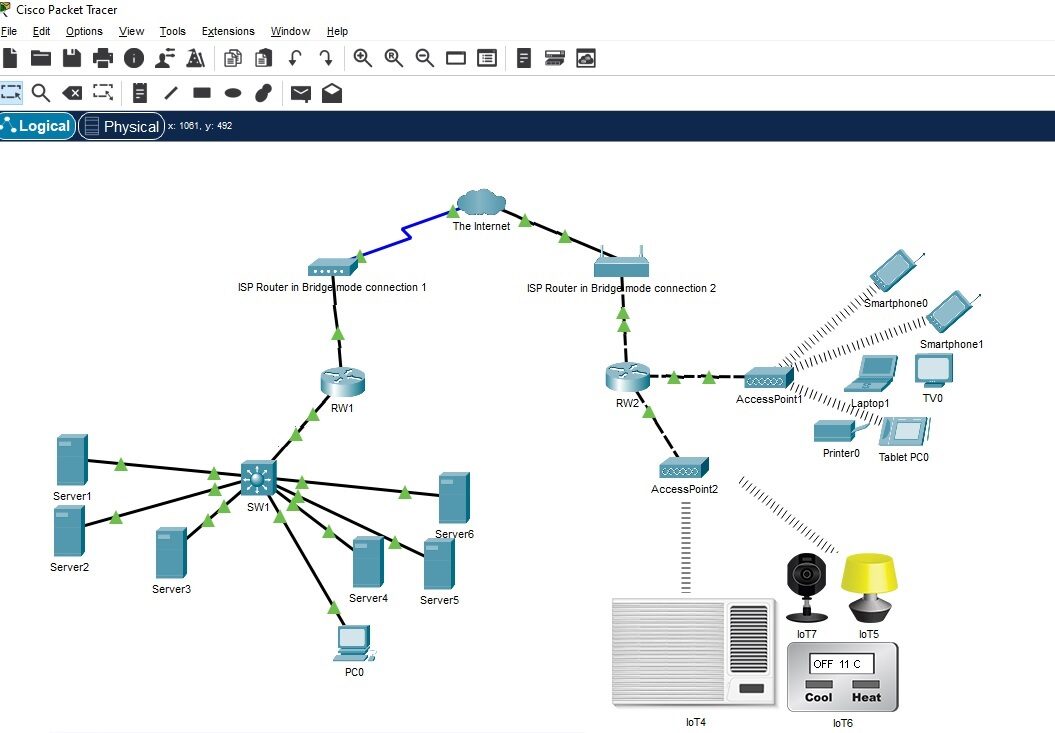

My Network Diagram in Cisco Packer Tracer

- RW1 - Cisco ASA 5515-X
- RW2 - pfSense
- SW1 - Cisco WS-C4948 Multilayer Switch - 48 Gigabit ports + 4 SFP optics
- Server1 - Supermicro SSG-6048R with VMware Esxi 8 installed
- Server2 - Supermicro SSG-6048R with VMware Esxi 8 installed
- Server3 - HP DL360 Gen9, Raid6 (4x SSD 1TB ) with Ubuntu 22.04 LTS installed and NFS Server shared to my VMware Cluster as Datastore
- Server4 - Laptop with Ubuntu 22.04 LTS -> DNS Server +ย OpenVPN with 2FA google authenticator in split tunnel.
- Server5 - Dell Poweredge 510
- Server6 - HP DL360 G7
